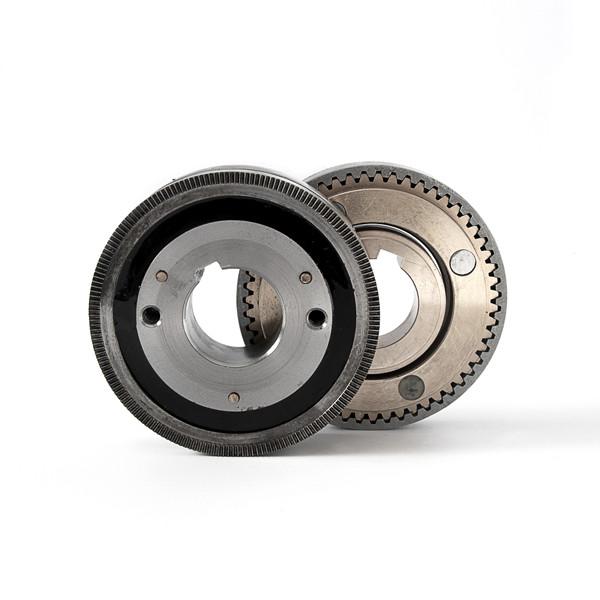

High Speed DLY1-16 DLY1-40 Electromagnetic Clutch And Brake 24VDc

Brand Name : Tianniu

Model Number : DLY1

Certification : CGS

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability : 10000 per month

Delivery Time : 5-10working days

Packaging Details : Cartons by sea shipping by airplane

Name : DLY1 Series Industrial Electromagnetic Brake

Inner Diameter : 27.5-265mm

Outer Diameter: 85-253mm : 61-460mm

length : 34.5-70.5mm

Warranty : 12 months

Customized support : OEM, ODM

Weight : 0.57kg-34kg

Contact Now

High Speed DLY1-16 DLY1-40 24VDc Electromagnetic Clutch and Brake

Products Introduction

The clutch one way bearing​ is mainly used in machinery driving system,and widely in metal processing machine,metallurgy,steel rolling machine, packing machine, medical machine, food processing machine textile and printing and dying machine, paper making machine, precision machine tool etc.

The working principle of electromagnetic clutch briefly introduces the characteristics.

1. High speed response: because it is dry type, the torque is transmitted quickly and convenient action can be achieved.

2. High energy, high durability and good heat dissipation

3. Easy assembly and maintenance: it belongs to the static shape of the magnetic field coil hidden in the ball bearing, so there is no need to take out the middle core and use the carbon brush, which is simple to use.

4. Sure action: the use of plate-shaped shrapnel will not loosen despite strong vibration, with good durability

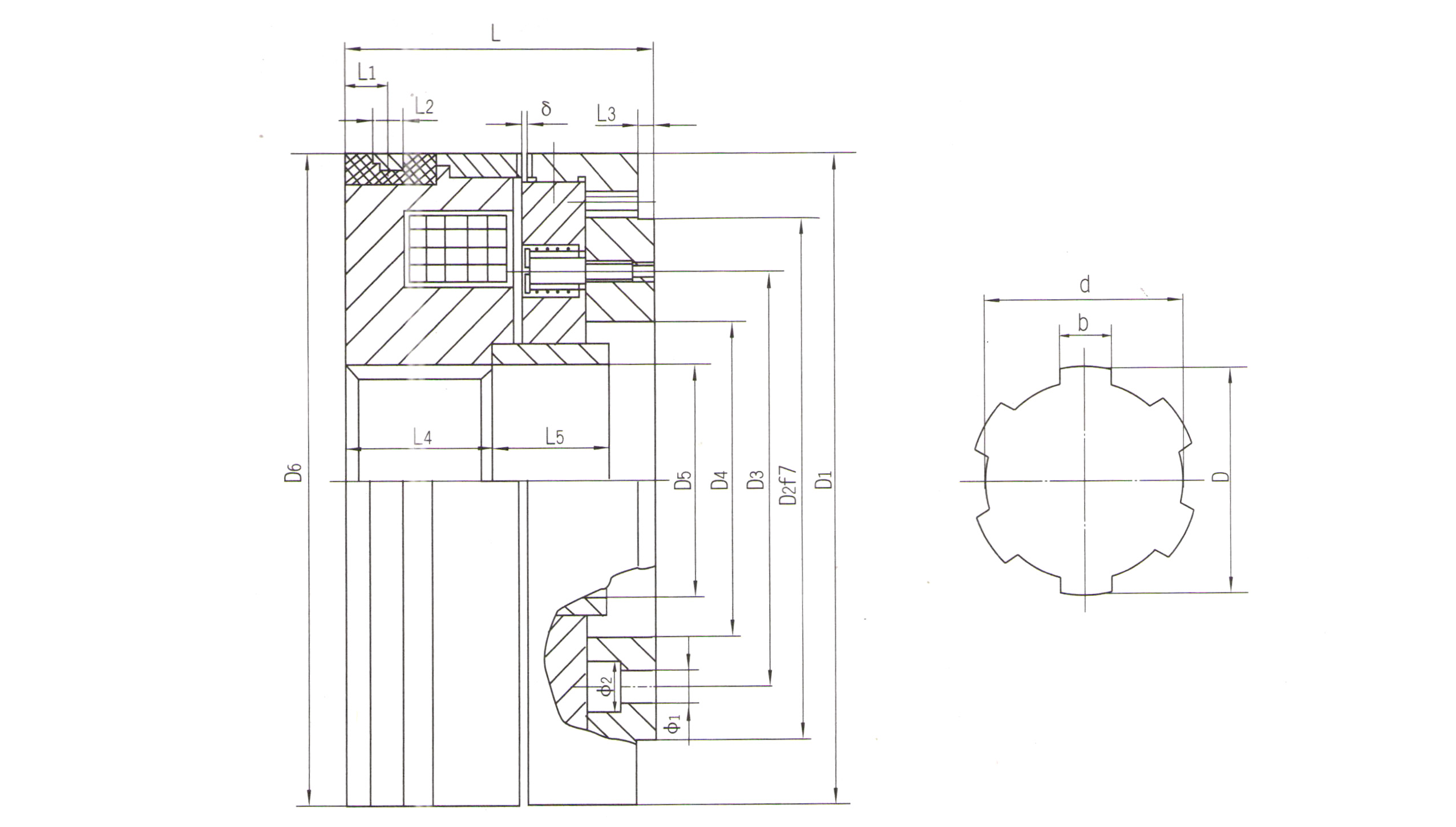

Products Parameters

SIZE Radial Demensions Axial Demensions
D1 D2 D3 D4 D5 D6 D d b Φ1 Φ2 L L1 L2 L3 L4 L5 δ
DLY1-16 115 90 80 60H8 45H11 115 45 40 12 4-Φ7 4-ΦII 52 7 8 2 24 22 0.25
DLY1-40 145 115 92 70H7 50H11 145 50 45 12 6-Φ7 6-ΦII 70 9 8 3 34 26 0.5
